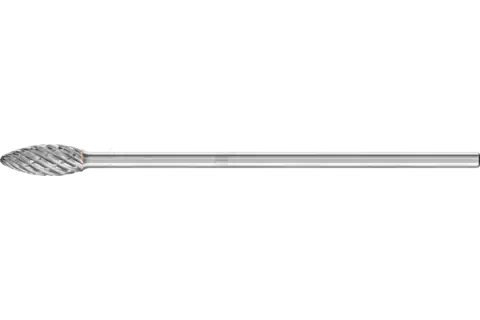

tungsten carbide high-performance burr STEEL flame B dia. 12x30mm shank dia. 6x150mm for steel

Technical information

tungsten carbide high-performance burr STEEL flame B dia. 12x30mm shank dia. 6x150mm for steel

Cut: STEEL
Dia. external: 12 mm
Dia. shank: 6 mm
Length, cut: 30 mm
Length, total: 180 mm
RPM, hardened, heat-treated steels over 1,200 N/mm²: 7.000 RPM
RPM, steels up to 1,200 N/mm²: 7.000 RPM
Radius corner design: 2.1 mm
Packaging unit: 1 piece

Description

With the innovative STEEL cut, PFERD TOOLS has developed unique burrs for working with steel and cast steel. They feature tangibly increased aggressiveness and good guidance. They thus ensure safe and precise work. Thanks to their extremely high stock removal rate, burrs with the STEEL cut help users save considerable time when working, thus making them an economically efficient option.

Flame-shaped burr according to ISO 7755/8.

Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.

Advantages

Up to 50 % higher stock removal rate when used on steel and cast steel in comparison to conventional cross-cut burrs.
Tangibly more aggressive, large chips and very good chip removal through the innovative tooth geometry.
Workpieces are protected through significantly lower thermal load.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Recommendations for use

To prevent vibrations, place the tools on powerful drives with an elastically supported spindle wherever possible.
Observe the recommended rotational speeds.
If the smallest area of the burr diameter is being used, the recommended rotational speed can be increased accordingly.
To ensure costeffective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Safety notes

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.
For safety reasons, the maximum rotational speeds with contact with the workpiece require a reduction in the recommended speed of tungsten carbide burrs with standard shanks. Observe the product information included.
When working with long shank lengths, it is crucial that the tool is in contact with the workpiece (or inserted in the bore or slot to be machined) before the drive system is turned on. As a rule, the tool must remain in contact with the workpiece for as long as the machine is running. Failure to observe this procedure may result in burr failure (bending) and hence an increased risk of accidents. If continuous contact between the tool and the workpiece is not guaranteed during use, the maximum idling speeds must not be exceeded.
Not suitable for robotic or stationary applications. Risk of bending. Use only rigid clamping systems/drives.

Materials that can be worked: Case-hardened steels; Cast steel; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Flexible shaft drive; Robot; Stationary machines; Straight grinder; Tool machine

PFERDVALUE

PFERD TOOLS EFFICIENCY recommends burrs with the STEEL cut for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.

PFERD TOOLS ERGONOMICS recommends burrs with the STEEL cut as an innovative tool solution for comfort when working, with significantly reduced vibration and less noise.
