High Speed Torus Cutter

TORUS CUTTER high-performance cutter dia. 20x60 mm for robots, aluminium machining

Item number:: 23000047
EAN:: 4007220414965

TORUS CUTTER high-performance cutter dia. 20x60 mm for robots, aluminium machining 2

TORUS CUTTER high-performance cutter dia. 20x60 mm for robots, aluminium machining 3

TORUS CUTTER high-performance cutter dia. 20x60 mm for robots, aluminium machining 4

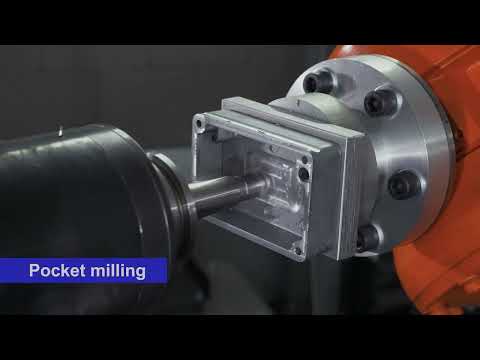

TORUS CUTTER high-performance cutter dia. 20x60 mm for robots, aluminium machining Youtube

Technical data

Retailers-Search

Matching accessories & spare parts

High Speed Torus Cutter cutting insert set WSP-T 10R ALU

High Speed Torus Cutter service set TSS-10R ALU

Technical information

TORUS CUTTER high-performance cutter dia. 20x60 mm for robots, aluminium machining

Dia. external: 20 mm
Dia. shank: 8 mm
Length, total: 2.23 /64 Inch
Length, total: 60 mm
RPM from, soft non-ferrous metals: 20000 RPM
RPM to, soft non-ferrous metals: 30000 RPM
RPM, optimum, from: 20000 RPM
RPM, optimum, to: 30000 RPM
Suitable for diameter [mm]: 10 mm
Packaging unit: 1 piece

Description

The High Speed Torus Cutter is an unparalleled tool for use on robots with an extremely high stock removal rate. Unlike grinding tools, the cutter does not generate hazardous or explosive dust, making it ideal for a variety of applications on aluminium materials. Thanks to its compact design, the High Speed Torus Cutter is the ideal tool for working in hard-to-reach areas and on delicate points such as grooves, pockets and tight radii and contours. The High Speed Torus Cutter is used with two tungsten carbide cutting inserts.

The Cutter perfectly complements the ALUMASTER High Speed Disc in the HSD-R 50 version and burrs with the ALU cut.

Advantages

Specially developed design for use in hard-to-reach areas.
Does not generate hazardous or explosive dust.
An extraction system is not required.
Exceptionally high stock removal rate.
Reduced vibrations thanks to small contact surface.
Turnable and replaceable tungsten carbide cutting inserts.
Can be used face-down.

Recommendations for use

The tool has primarily been designed for use on aluminium, wrought aluminium alloys and cast aluminium. Non-ferrous metals with a relatively low strength and fibre-reinforced plastics can also be machined. This must be checked for the specific application on a case-by-case basis.
The optimum rotational speed and power output for the tool drive are required for costeffective use of the Torus Cutter.
The High Speed Torus Cutter can be used on both the circumference and face.

Ordering notes

The cutting inserts are not included in delivery.

Safety notes

Tighten the mounting bolts of the cutting inserts using a TORX wrench TX 15. The tightening torque should be approx. 4 Nm. Alternatively, use a torque spanner with a tightening torque of 4 Nm.
Loose cutting inserts may break during use. Therefore, check regularly whether they are attached securely.
Do not use damaged cutting inserts! They may break!

Contents

High Speed Torus Cutter including two mounting bolts.

Materials that can be worked: Aluminium; Brass; Bronze; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hard aluminium alloys; Plastics; Soft aluminium alloys; Tough aluminium alloys; Zinc

Applications: Deburring; Milling; Milling out; Surface work; Working on edges (chamfering, rounding); Work on fillet welds; Work on weld seams

Drive types: Robot

PFERDVALUE

PFERDEFFICIENCY

recommends the High Speed Torus Cutter for achieving perfect results as quickly as possible whilst saving resources.

PFERDERGONOMICS

recommends the High Speed Torus Cutter as an innovative tool solution for processing aluminium as it does not generate hazardous or explosive dust.
