Cup brushes knotted, COMBITWIST with thread

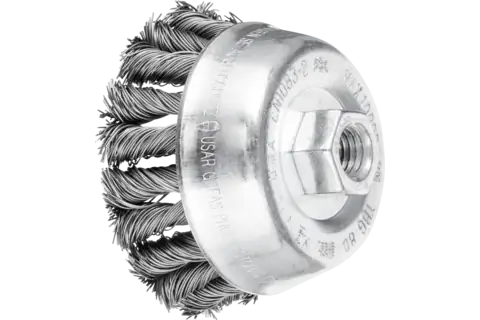

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1)

POS TBG 80/M14 CT ST 0,50

Item number:: 43306061
EAN:: 4007220806715

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1) 1

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1) 2

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1) 3

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1) 4

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1) Youtube

Technical data Change variant

Retailers-Search

Choose options

Dia. external

65 mm 80 mm 100 mm

Dia. filament material

0.35 mm 0.5 mm

Filament material

Stainless steel wire (INOX) Steel wire (ST)

Packaging unit

1 5

Reset Filter

Technical information

COMBITWIST cup brush knotted TBG dia. 80mm M14 steel wire dia. 0.50mm angle grinders (1)

Dia. external: 80 mm
Dia. filament material: 0.5 mm
Dia. thread: M14x2
Filament material: Steel wire (ST)
Length, filament: 20 mm
Max. RPM: 10000 RPM
Mounting system: Thread
Number, knots: 20 pcs.
PFERD TOOLS type: POS TBG 80/M14 CT ST 0,50

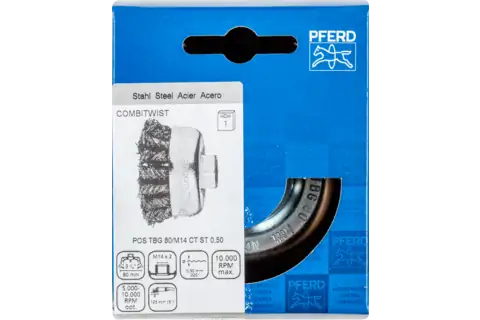

Packaging: POS packaging
RPM, optimum: 5.000 - 10.000 RPM
Packaging unit: 1 piece

Description

Very aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Advantages

Maximum economic efficiency due to maximum tool life and stock removal rate.
High level of comfort thanks to smooth running with no brush recoiling.
Suitable for work on corners and edges as the knots are less likely to unravel.
Aggressive brushing effect due to the very stiff wire knots.
Long tool life through use of PFERD TOOLS special wire.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on powerful angle grinders.

Materials that can be worked: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Angle grinder; Drive spindle

PFERDVALUE

PFERD TOOLS ERGONOMICS recommends the COMBITWIST design to sustainably reduce the vibration produced during use and to improve comfort when working.

Downloads

Matching tool drive

PWA 11/120 RS PWA 11/120 RS
