Cup brushes knotted, COMBITWIST with thread

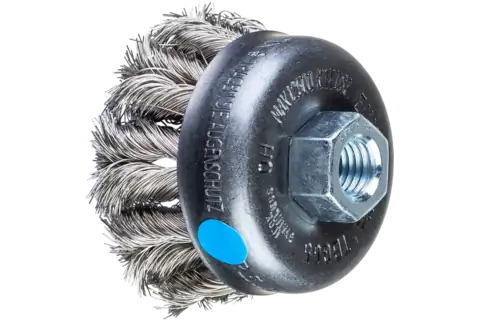

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders

POS TBG 65/M14 CT INOX 0,35

Item number:: 43305043
EAN:: 4007220806739

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders 1

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders 2

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders 3

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders 4

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders Youtube

Technical data Change variant

Retailers-Search

Choose options

Dia. external

65 mm 80 mm 100 mm

Dia. filament material

0.35 mm 0.5 mm

Filament material

Stainless steel wire (INOX) Steel wire (ST)

Packaging unit

1 5

Reset Filter

Technical information

COMBITWIST cup brush knotted TBG dia. 65 mm M14 stainless steel wire dia. 0.35 mm angle grinders

Dia. external: 65 mm
Dia. filament material: 0.35 mm
Dia. thread: M14x2
Filament material: Stainless steel wire (INOX)
Length, filament: 22 mm
Max. RPM: 12500 RPM
Mounting system: Thread
Number, knots: 18 pcs.
PFERD TOOLS type: POS TBG 65/M14 CT INOX 0,35

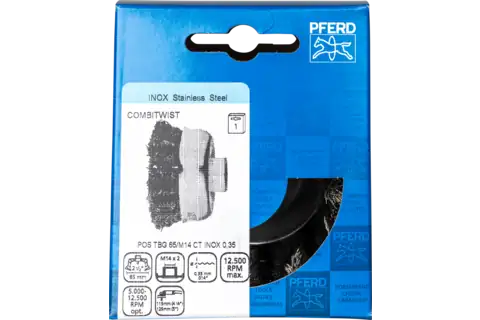

Packaging: POS packaging
RPM, optimum: 5.000 - 12.500 RPM
Packaging unit: 1 piece

Description

Very aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Advantages

Maximum economic efficiency due to maximum tool life and stock removal rate.
High level of comfort thanks to smooth running with no brush recoiling.
Suitable for work on corners and edges as the knots are less likely to unravel.
Aggressive brushing effect due to the very stiff wire knots.
Very good corrosion resistance.
The brush is degreased and does not leave any oil residue on the workpiece.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on powerful angle grinders.

Materials that can be worked: Aluminium; Bronze; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing heat discolouration; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Angle grinder; Drive spindle

PFERDVALUE

PFERD TOOLS ERGONOMICS recommends the COMBITWIST design to sustainably reduce the vibration produced during use and to improve comfort when working.

Downloads

Matching tool drive

PWA 11/120 RS PWA 11/120 RS
